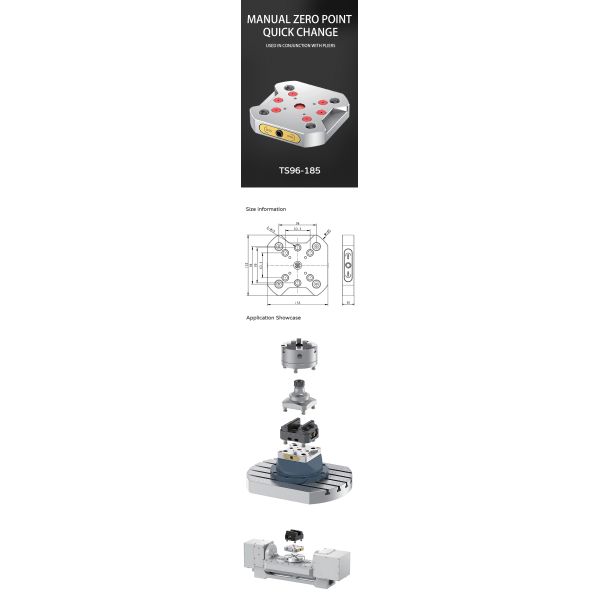

Modular Quick Change Fixture Clamps 5 Axis Fixtures 22KN 185mm Cnc Workholding Clamps

  • 1
  • 2
  • 3

Brand Name : ADJIG

Model Number : TS96-185

Place of Origin : Chongqing, China

MOQ : 1

Price : 414 - 483 USD per item

Payment Terms : L/C,T/T

Supply Ability : Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.

Delivery Time : 7-10 days

Packaging Details : Carton/wooden crate

Dimensions : D185*30mm

Material : Hardened Stainless Steel

Weight : 4.4kg

Bolts : 6-M10

Clamping Force : 22KN

Repeatability : ＜0.01mm

Bolt : 6-M10

Application : Four-axis and five-axis CNC machine tool machining

Contact Now

Modular Zero Point Base Plates for Clamping Fixturing 5-Axis CNC Vices

Modular Zero Point Base Plates for TS96-185 Clamping Fixturing 5-Axis CNC Vices

The perfect combination of manual vises and manual zero positioning system enables a modular design that quickly achieves strong locking

The Modular Zero Point Base Plates for the TS96-185 system create a versatile and scalable foundation for 5-axis CNC workholding. These plates can be seamlessly combined to form a custom clamping surface, perfectly adapting to your specific part and fixture needs. The integrated zero-point system ensures rapid, tool-less changeovers of vices and fixtures, achieving repeatable micron-level accuracy in seconds. This modularity, combined with the robust TS96-185 clamping mechanism, provides unparalleled flexibility for complex, multi-sided machining. Dramatically reduce setup time, maximize spindle utilization, and boost productivity with this essential, high-precision fixturing solution for modern manufacturing.

Model Dimensions Material Weight Bolts Clamping Force
TS96-185 D185*30mm Hardened Stainless Steel 4.4kg 6-M10 22KN

Modular Quick Change Fixture Clamps 5 Axis Fixtures 22KN 185mm Cnc Workholding Clamps
