High Precision Expansion Clamp Pin 34g 59g For CNC Fixtures Workholding

Name: High Precision Expansion Clamp Pin 34g 59g For CNC Fixtures Workholding
Brand: ADJIG
Price: 36 USD

Brand Name : ADJIG

Model Number : JYKZ-LS01

Place of Origin : Chongqing, China

MOQ : 1

Price : 36 - 48 USD per item

Payment Terms : L/C,T/T

Supply Ability : Less than 10 pieces, shipped within 10 days. More than 10 items will be shipped within 30 days.

Delivery Time : 7-10 days

Packaging Details : Carton/wooden crate

Tightening Torque Tapered Bolt (N.m) : 22

Expansion Diameter for Self-Processing : 0.1~0.15

Expansion Diameter : 0.6/0.8

Weight (g) : 34/59

Contact Now

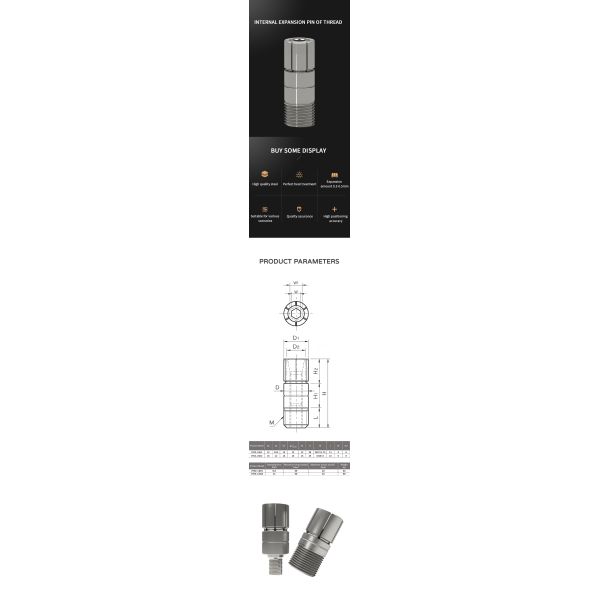

High Precision Expansion Pin for CNC Fixtures and Workholding Applications

Body:SUS630 HRC34

Tapered bolts:Steel (strength class 12.9) Oxygen resin coating

This High Precision Expansion Pin delivers exceptional accuracy for CNC fixtures and workholding applications. Engineered with a precision-ground taper and advanced expansion mechanism, it provides secure, vibration-free clamping with repeatable micron-level accuracy. The pin's unique design ensures uniform radial expansion for perfect concentricity, making it ideal for locating and securing components in machining operations. Manufactured from hardened, heat-treated steel, it withstands rigorous production environments while maintaining long-term dimensional stability. The quick-expansion feature dramatically reduces setup time while providing consistent clamping force, making it an essential component for high-volume precision machining of gears, bearings, and other critical components in milling, grinding, and turning applications.

Part Number	D1	D2	H2	0 D-0.025	H1	H	M	L	W	W1	Clamping Force (KN)	Tightening Torque Body (N.m)
JYKZ-LS01	12	10.5	15	12	12	38	M12*1.75	11	5	6	8.4	30
JYKZ-LS02	16	12	16	16	16	45	M16*2	13	6	8	11	30

Part Number	Tightening Torque Tapered Bolt (N.m)	Expansion Diameter for Self-Processing	Expansion Diameter	Weight (g)	Suitable for Tapered bolts
JYKZ-LS01	22	0.1~0.15	0.6	34	JYKZ-LS01-TB
JYKZ-LS02	22	0.1~0.15	0.8	59	JYKZ-LS02-TB
