Swing Clamp Heat-Treated S45C Steel with Black Oxide Finish for Workholding CNC Fixtures

Name: Swing Clamp HeatTreated S45C Steel with Black Oxide Finish for Workholding CNC Fixtures
Brand: ADJIG
Price: 28 USD

Brand Name : ADJIG

Model Number : CP09

Place of Origin : Chongqing, China

MOQ : 5

Payment Terms : L/C,T/T

Supply Ability : Less than 20 pieces, shipped within 10 days. More than 20 items will be shipped within 15-20 days.

Delivery Time : 7-10 days

Packaging Details : Carton/Wooden crate

Price : 28-56 USD per item

Model : CP09

Material : S45C

Heat Treatment : HRC 38°-42°

Surface Finish : Blackened

Contact Now

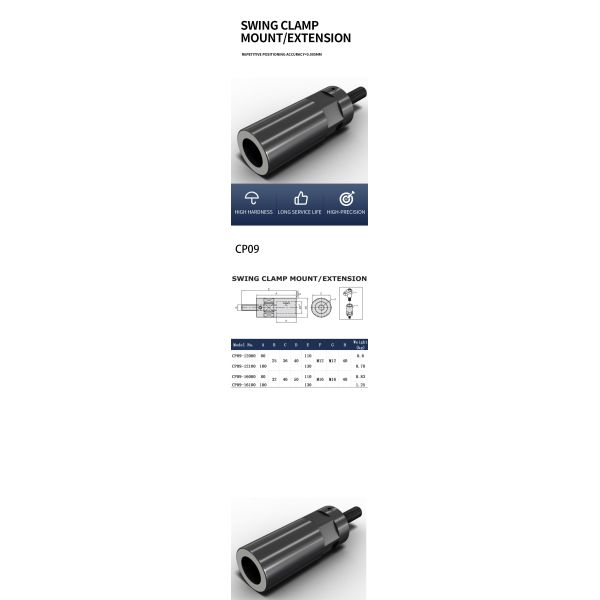

Swing Clamp Heat-Treated S45C Steel with Black Oxide Finish for Workholding CNC Fixtures

Material: S45C
Heat Treatment: HRC 38°-42°
Surface Finish: Blackened
Features: Forms a clamping fixture with CP10, mounted on a base for holding workpieces.

Engineered for exceptional durability and performance, this Swing Clamp features a robust body made from heat-treated S45C steel, ensuring maximum strength and long-term reliability in demanding CNC workholding applications. The smooth, pivoting arm action allows for rapid loading and unloading of workpieces, drastically reducing non-cutting time. The protective black oxide finish provides superior corrosion resistance and reduces maintenance needs. Ideal for automated fixtures, this heavy-duty clamp delivers consistent, powerful clamping force with pinpoint accuracy, making it an indispensable component for maximizing productivity and precision in high-volume machining environments.

Model No.	A	B	C	D	E	F	G	H	Weight(kg)
CP09-12080	80	25	36	40	110	M12	M12	40	0.6
CP09-12100	100				130				0.78
CP09-16080	80	32	46	50	110	M16	M16	40	0.83
CP09-16100	100				130				1.25
